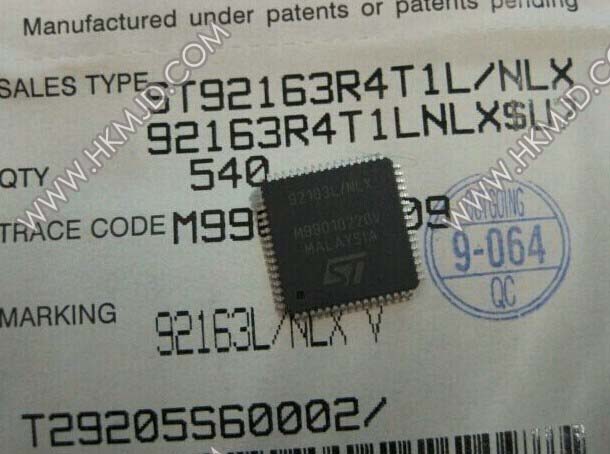

ST92163

ST92163
型号:ST92163
品牌:ST ST
批号:14+ROHS
封装:QFP-64
原价:0
数量:68000
PDF电子文档:
订购电话:86755-83294757
要查看会员价请注册登陆
备注:全新原装 Brand new in stock
更多

  • 搜索此图
  • 收藏商品
  • 加入购物车
详细描述



ST92163 ST92163R4T1L -- 8/16-BIT FULL SPEED USB MCU FOR COMPOSITE DEVICES WITH 16 ENDPOINTS, 20K ROM, 2K RAM, I2C, SCI, & MFT

Feature
■ Internal Memories: 20 Kbytes ROM/EPROM/OTP, 2 Kbytes RAM
■ Register oriented 8/16 bit core
■ 224 general purpose registers available as RAM, accumulators or index pointers
■ Minimum instruction cycle time: 167 ns (@24 MHz CPU frequency)
■ Low power modes: WFI, SLOW, HALT and STOP
■ DMA controller for reduced processor overhead
■ Full speed USB interface with DMA, compliant with USB specifications version 1.1 (in normal voltage mode)
■ USB Embedded Functions with 16 fully configurable endpoints (buffer size programmable), supporting all USB data transfer types (Isochronous included)
■ On-chip USB transceiver and 3.3 voltage regulator
■ Multimaster I2C-bus serial interface up to 400KHz. with DMA capability
■ Serial Communications Interface (SCI) with DMA capability:
– Asynchronous mode up to 315 Kb/s
– Synchronous mode up to 3 MHz
■ External memory interface (8-bit data/16-bit address) with DMA capability from the USB
■ 16-bit Multi-Function Timer (12 operating modes) with DMA capability
■ 16-bit Timer with 8-bit prescaler and Watchdog
■ 6-channel, 8-bit A/D Converter (ADC)
■ 15 interrupt pins on 8 interrupt channels
■ 14 pins programmable as wake-up or additional external interrupts
■ 42 (DIP56) or 44 (QFP64) fully programmable I/Os with 6 or 8 high sink pads (10 mA @ 1 V)
■ Programmable PLL clock generator (RCCU) using a low frequency external quartz (8 MHz)
■ On-chip RC oscillator for low power operation
■ Low Voltage Detector Reset on some devices1
■ Rich instruction set with 14 addressing modes
■ Several operating voltage modes available on some devices1:
– Normal Voltage Mode
– 8-MHz Low Voltage Mode
– 16-MHz Low Voltage Mode
■ 0 -24 MHz CPU clock operation @ 4.0-5.5 V (all devices)
■ 0 - 8 MHz CPU clock operation @ 3.0-4.0 V (8- MHz and 16-MHz Low Voltage devices)
■ 0 - 16 MHz CPU clock operation @ 3.0-4.0 V (16-MHz Low Voltage devices only)
■ Division-by-zero trap generation
■ 0 oC to 70 oC temperature range
■ Low EMI design supporting single sided PCB
■ Complete development tools, including assembler, linker, C-compiler, archiver, source level debugger and hardware emulators, and Real Time Operating System
-------------------------------------------------------------------------------------------------------------------------

【買家必讀】:電子元器件是專業型的產品,技術含量較高,本身可能存在多種品牌,後輟與封裝,可能導致參數與性能的差異,如有不慎,很有可能導致元器件購買錯誤,為了更好的解決您的問題,所以請您務必在下单前,將產品的封裝、後綴告訴我們。以便我們能準確迅速的为您查询。

由于客户采购批量与样品的价格不同,网上无法统一注明,请您把采购型号通过页面旺旺或客服QQ401799895或拨打国内销售部电话:0755-83957301,由客服人员为您报价;有时元件厂商价格稍许变动,本公司未能及时调整,如您觉得售价稍高,请与我们说明并适当议价,我们会根据市场情况给您相应的折扣,我们保证提供最市场最优势的价格最好元器件;感谢支持(所售元件均无含税,需开普票7%和增值票17%的客户请说明)

-------------------------------------------------------------------------------------------------------------------------

MJD is a corporation which engaged in agency electronic components. MJD Through seventeen years unrimitting efforts,  aspire to provide our customers with world-leading products and service. Now already became a one of the most famous electronic components distributor in China.

Because of wholesale price is different from sample price, our website can not state.Please send your required part number via email to Sales@hkmjd.com or add our skype id mjdccm898 for online talking.As well as welcome you call us : 0755-83957301  We will send offer for you;  Sometimes manufacturer's price is unstable, so we don't adjust price in time. if you feel price is a little high for you, just feel free to contact us for consultation. Thank you for your support !

100% 全新原装 (New and original)
与ST92163相关的产品
与ST92163相关的型号
型号 品牌 批号 封装 数量 备注 资料
 ST92T163T1  ST  13+RoHs  QFP64  66600  Original全新原装进口
 ST9293J9B1  ST  13+  DIP-42  117500  Original全新原装进口
 ST92195C3B1  ST  13+RoHS  DIP-56  26600  Original全新原装进口
 ST90T40C6  ST  13+ROHS  PLCC  63555  Original 原装现货
 ST92T163  ST  13+RoHs  QFP  68000  100% 全新原装 (New and original)
 ST92T163R4T1E  ST  13+RoHs  QFP  68000  100% 全新原装(Brand new)
 ST92163  ST  14+ROHS  QFP-64  68000  全新原装 Brand new in stock
 ST90158  ST  14+ROHS  QFP-100  45965  原装进口 New and original
