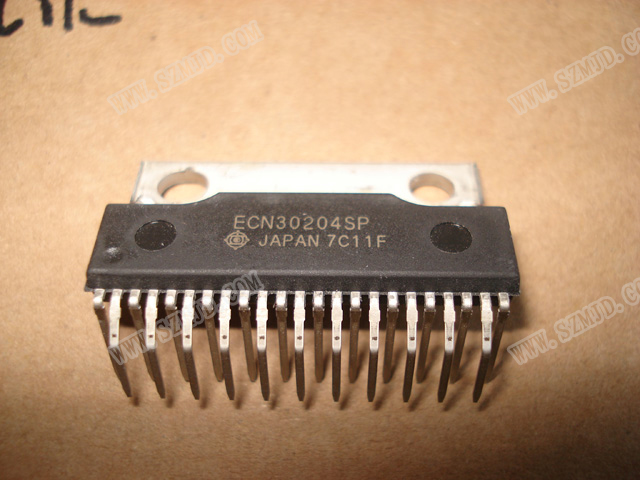

ECN30204

ECN30204
型号:ECN30204
品牌:HITACHI HITACHI
批号:13+RoHs
封装:ZIP
原价:16
数量:68000
PDF电子文档:
订购电话:86755-83294757
要查看会员价请注册登陆
备注:100% 全新原装 (New and original)
更多

  • 搜索此图
  • 收藏商品
  • 加入购物车
详细描述

  ECN30204





Description

 Integrated, Single-Chip Direct BLDC Motor Driver IC
 Integrated 3-Phase BLDC motors operating from a 450VDC (down to 20VDC) voltage bus
 Integrated Charge Pump - Constant TOP Arm bias independent of motor speed
 Integrated 3-Phase Brushless (Electronic) commutation via external Hall ICs
 Integrated 3-Phase 6-IGBT Motor Bridge with on-chip free-wheeling diodes
 Pinout and Board Layout are compatible with the existing Hitachi ECN3022
 Breakdown, Max rated 500VDC/1.5A
 Latch-Up free monolithic IC built with a high voltage Dielectrically Isolated (DI) process
 Available in 3 package types with built-in heat sink (Tab)
 Functions and Features
 Simple Variable Speed Control via a single (VSP) analog input
 PWM Speed Control without requiring a MicroController
 PWM duty cycle generator provides a 0% to 100% speed control range
 Tachometer - Generates a (RPM/60)x(P/2) x 3 Hertz speed signal (FG)
 BOTTOM Arms switch at up to 20kHz via an on-chip OSC/PWM
 On-Chip 7.5VDC regulator (CB) with a guaranteed external Min load (25mA)
 Over-Current protection is set by an external Sense Resistor (RS)
 Under-Voltage protection for TOP and BOTTOM IGBT Arms
 An all output IGBT Shut-OFF function
 Low stand-by power


Because of wholesale price is different from sample price, our website can not state.Please send your required part number via email to Sales@hkmjd.com or add our skype id mjdccm898 for online talking.As well as welcome you call us : 0755-83957301  We will send offer for you;  Sometimes manufacturer's price is unstable, so we don't adjust price in time. if you feel price is a little high for you, just feel free to contact us for consultation. Thank you for your support !



批发与零售价位不同,无法一一明示,详情请通过邮件或客服咨询(国内销售部电话:0755-83957301,企业QQ: 2850151585), 由于电子元器件价格不稳定,时常有稍许变动,本公司未能及时调整,如您觉得售价不适,请与我们说明并适当议价,谢谢支持。
与ECN30204相关的产品
与ECN30204相关的型号
型号 品牌 批号 封装 数量 备注 资料
 ECN30204SP  HITACHI  13+  ZIP  5945  100%全新原装 New in stock
 ECN30204  HITACHI  13+RoHs  ZIP  68000  100% 全新原装 (New and original)
 ECN30206SP  HITACHI  17+RoHs  ZIP-23  25874  100%原装进口(original in stock)
 ECN3290TF  HITACHI  18+ROSH  LQFP48  2173  全新原装New and original have in stock
