产品资讯

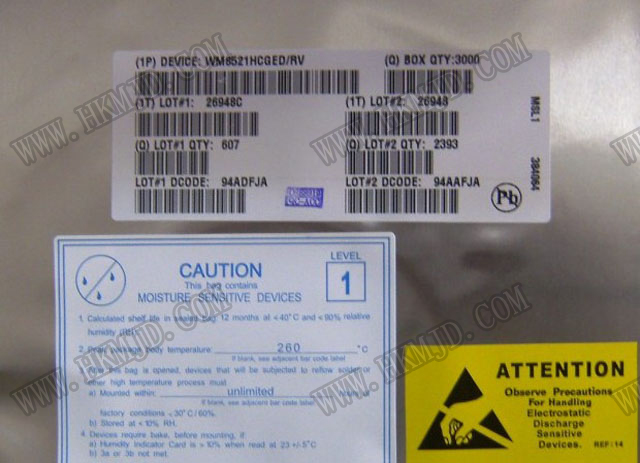

WM8521HCGED

型号：WM8521HCGED
品牌：Wolfson

批号：13+
封装：SOP-14
原价：6
数量：954412
PDF电子文档：

订购电话：86755-83294757
要查看会员价请注册或登陆
备注：Original in stcok 原装现货

详细描述

WM8521HCGED

STEREO DAC WITH INTEGRATED OUTPUT STAGE FOR 2VRMS LINE OUT

DESCRIPTION

The WM8521 is a 96kHz stereo DAC with an integrated output

op-amp stage, designed to generate a 2.0Vrms output signal

directly, so reducing external component requirements in digital

audio applications.

WM8521 comes into two variants WM8521HC and WM8521H9

which offers different line drive output capabilities. WM8521HC

outputs 2Vrms at 12V supply, while WM8521H9 outputs

2.0Vrms at 9V supply. WM8521HC/H9 are designed for cost

sensitive consumer digital audio applications requiring 2Vrms

line output.

A 24-bit multi-bit sigma delta DAC is used with oversampling

digital interpolation filters. Digital audio input word lengths from

16-32 bits and sampling rates from 8kHz to 96kHz are

supported.

The audio interface supports I2S, Right Justified and DSP digital

audio formats.

The devices are controlled via a hardware interface which

provides access to features including de-emphasis, mute and

data formats. These devices are pin equivalent and are

available in a 14-pin SOIC package.

FEATURES

Audio Performance

DAC SNR 98dB (‘A’ weighted @ 48kHz)

THD -81dB (‘A’ weighted @ 48kHz)

DAC Sampling Frequency: 8kHz – 96kHz

Pin Selectable Audio Data Interface Format

I2S, 16-bit Right Justified or 16bit DSP

2.0 Vrms output at 12V or 9V supply

8.2V to 13.2V Analogue, 2.7V to 3.6 Digital Supply

14-pin SOIC Package

APPLICATIONS

Consumer digital audio applications requiring 2 Vrms output

DVD Players

Digital TV

Digital Set Top Boxes

A/V Receivers

Because of wholesale price is different from sample price, our website can not state.Please send your required part number via email to Sales@hkmjd.com or add our skype id mjdccm898 for online talking.As well as welcome you call us : 0755-83957301 We will send offer for you; Sometimes manufacturer's price is unstable, so we don't adjust price in time. if you feel price is a little high for you, just feel free to contact us for consultation. Thank you for your support ！

批发与零售价位不同,无法一一明示,详情请通过邮件或客服咨询(国内销售部电话:0755-83957301,企业QQ2850151585), 由于电子元器件价格不稳定,时常有稍许变动,本公司未能及时调整,如您觉得售价不适，请与我们说明并适当议价,谢谢支持。
