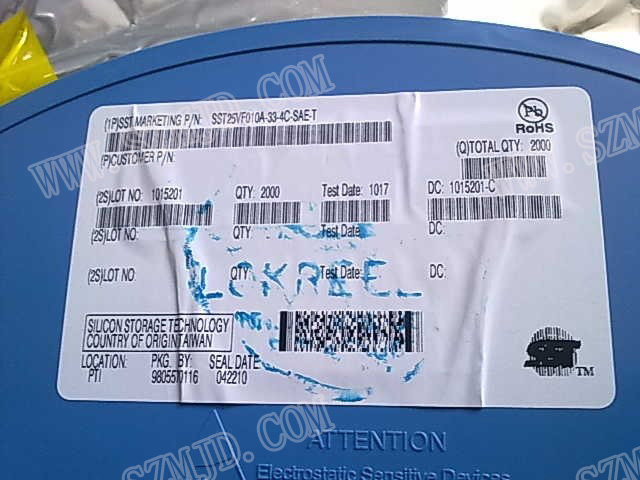

SST25VF010A-33-4C-SAE





FEATURES:

 Single 2.7-3.6V Read and Write Operations

 Serial Interface Architecture

– SPI Compatible: Mode 0 and Mode 3

 33 MHz Max Clock Frequency

 Superior Reliability

– Endurance: 100,000 Cycles (typical)

– Greater than 100 years Data Retention

 Low Power Consumption:

– Active Read Current: 7 mA (typical)

– Standby Current: 8 µA (typical)

 Flexible Erase Capability

– Uniform 4 KByte sectors

– Uniform 32 KByte overlay blocks

 Fast Erase and Byte-Program:

– Chip-Erase Time: 70 ms (typical)

– Sector- or Block-Erase Time: 18 ms (typical)

– Byte-Program Time: 14 µs (typical)

 Auto Address Increment (AAI) Programming

– Decrease total chip programming time over

Byte-Program operations



End-of-Write Detection

– Software Status

 Hold Pin (HOLD#)

– Suspends a serial sequence to the memory

without deselecting the device

 Write Protection (WP#)

– Enables/Disables the Lock-Down function of the

status register

 Software Write Protection

– Write protection through Block-Protection bits in

status register

 Temperature Range

– Commercial: 0°C to +70°C

– Industrial: -40°C to +85°C

– Extended: -20°C to +85°C

 Packages Available

– 8-lead SOIC 150 mil body width

– 8-contact WSON (5mm x 6mm)

 All non-Pb (lead-free) devices are RoHS compliant
