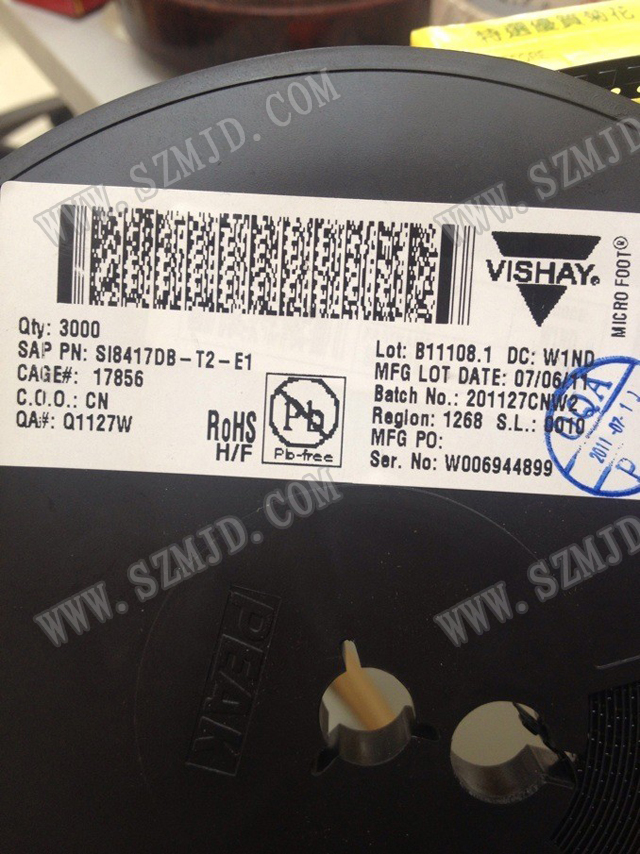

SI8417DB - P-Channel 1.8-V (G-S) MOSFET
CHARACTERISTICS
P-Channel Vertical DMOS
Macro Model (Subcircuit Model)
Level 3 MOS
Apply for both Linear and Switching Application
Accurate over the −55 to 125°C Temperature Range
Model the Gate Charge, Transient, and Diode Reverse Recovery
Characteristics
DESCRIPTION
The attached spice model describes the typical electrical
characteristics of the p-channel vertical DMOS. The subcircuit
model is extracted and optimized over the −55 to 125°C
temperature ranges under the pulsed 0-V to 5-V gate drive. The
saturated output impedance is best fit at the gate bias near the
threshold voltage.
A novel gate-to-drain feedback capacitance network is used to model
the gate charge characteristics while avoiding convergence difficulties
of the switched Cgd model. All model parameter values are optimized
to provide a best fit to the measured electrical data and are not
intended as an exact physical interpretation of the device.
