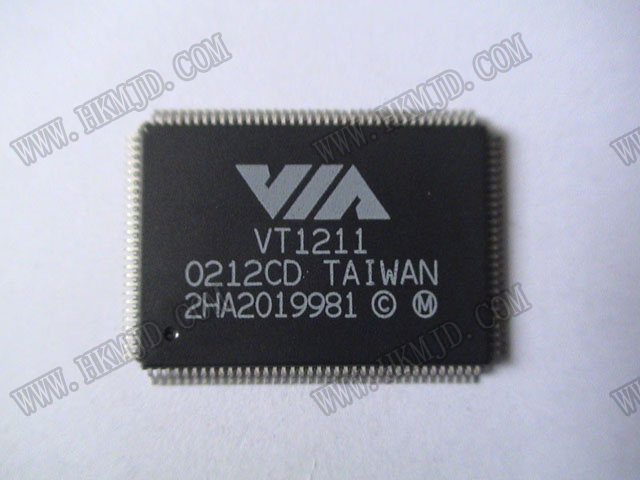

VT1211

VT1211
型号:VT1211
品牌:VIA VIA
批号:13+RoHS
封装:TQFP-128
原价:14
数量:78400
PDF电子文档:
订购电话:86755-83294757
要查看会员价请注册登陆
备注:专业分销VIA Brand new in stock
更多

  • 搜索此图
  • 收藏商品
  • 加入购物车
详细描述

VT1211

LPC SuperIO and Hardware Monitor



PRODUCT FEATURES
LPC (Low Pin Count) Interface
Complies with Intel Low Pin Count Interface Specification Revision 1.0
Supports LDRQ#, SERIRQ protocols
Hardware Monitor Controller
Built-in 8-bit Analog to Digital Converter
One thermal input for Pentium II type thermal diode
1 intrinsic Vcc voltage monitor input
5 external Universal Channels for monitor inputs
Monitors 2 fan tachometer inputs
1 chassis open detection input
WatchDog comparison of all monitored values
Provides VID0 - VID4 support for P6 class CPU
Over temperature indicator output
Over limit of fan and voltage indicator output
Provides beep tone warning
Serial Bus slave mode supported
Fan Speed Controller
Provides fan on-off and speed control
Supports 2 programmable Pulse Width Modulation (PWM) outputs
Duty cycle resolution of 1/256
Flash-ROM Interface
Supports up to 4MB flash ROM
SmartGuardian Controller
Provides automatic temperature to fan speed control
Supports mix-and-match for temperature inputs and fan speed control outputs
Overrides fan speed controller during catastrophic situations
Provides over-temperature beep tone warning
Two 16C550 UARTs
Supports two standard Serial Ports
Each port supports Serial Port
IEEE1284 Parallel Port
Standard mode -- Bi-directional SPP
Enhanced mode -- EPP V1.7 and 1.9 compliant
High speed mode -- ECP, IEEE1284 compliant
Backdrive current reduction
Printer power-on damage reduction




Because of wholesale price is different from sample price, our website can not state. Please send your required part number via email to Sales@hkmjd.com or add our skype id mjdccm898 for online talking.As well as welcome you call us : 0755-83957301  We will send offer for you;  Sometimes manufacturer's price is unstable, so we don't adjust price in time. if you feel price is a little high for you, just feel free to contact us for consultation. Thank you for your support !


批发与零售价位不同,无法一一明示,详情请通过邮件或客服咨询(国内销售部电话:0755-83957301,企业QQ: 2850151585), 由于电子元器件价格不稳定,时常有稍许变动,本公司未能及时调整,如您觉得售价不适,请与我们说明并适当议价,谢谢支持。

与VT1211相关的产品
与VT1211相关的型号
型号 品牌 批号 封装 数量 备注 资料
 VT1677SBFQX  MAXIM  17+ROSH  QFN  13698  原装现货original spot stock
 VT1211  VIA  13+RoHS  TQFP-128  78400  专业分销VIA Brand new in stock
 VT1612A  VIA  13+RoHS  QFP48  14000  专业分销VIA Brand new in stock
 VT1621  VIA  13+RoHS  TQFP44  125400  专业分销VIA Brand new in stock
 VT1708A  VIA  07+  QFP  2550  原装现货original spot stock
 VT1611  VIA  13+RoHs  LQFP48  68000  100% 全新原装 (New and original)
 VT1611A  VIA  13+RoHs  LQFP48  68000  100% 全新原装 (New and original)
 VT1616  VIA  13+RoHs  QFP  50000  100% 全新原装 (New and original)
