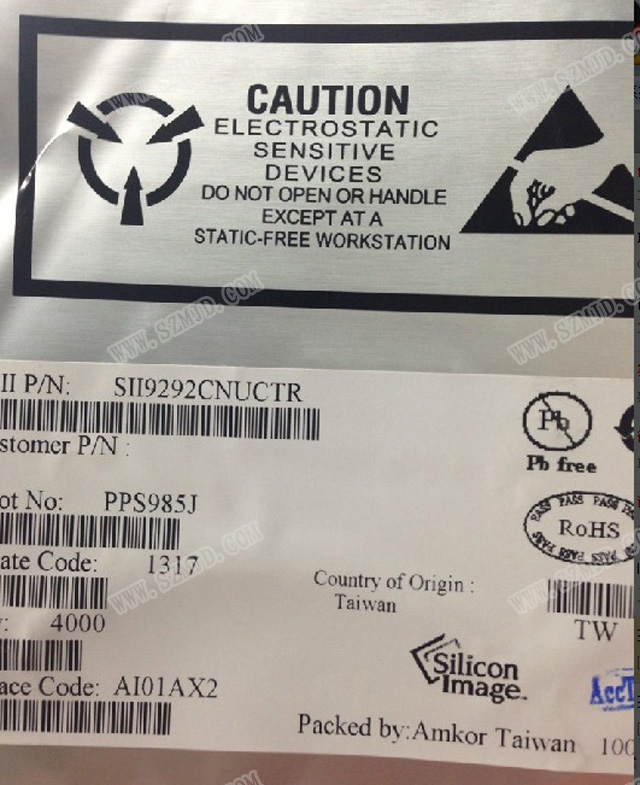

SiI9292 MHL™-to-HDMI Bridge
MHL-to-HDMI bridge device for HD audio and video connectivity
The SiI9292 enables the design of low-power, MHL-to-HDMI accessories such as docking stations, converters
and adapters, enabling HD audio and video connectivity between mobile devices enabled with MHL and HDTVs
and displays with HDMI inputs.
Digital Audio/Video Output
Integrated TMDS core
HDMI output
HDMI output resolution support - from
25 MHz – 75MHz, up to 1080p@ 24/30 Hz
Digital Audio/Video Input
Integrated TMDS core
MHL input
MHL input resolution support - from
25 MHz – 75MHz, up to 1080p@ 24/30 Hz
Single-Wire Control Bus
Consumer Electronics Control
(CEC) & DDC
Support for DDC and CEC signals
System Operation
Optional software control for smart cable/
dongle applications via 1 MHz local I2C bus
Flexible interrupt registers and an
interrupt pin
Power Management
1.2 V and 3.3 V rails for low-power
operation
Flexible power-down modes
Available Packages
40-pin QFN
6 mm x 6 mm footprint
Operating Range
-20°C to +85°C extended temperature
range support
