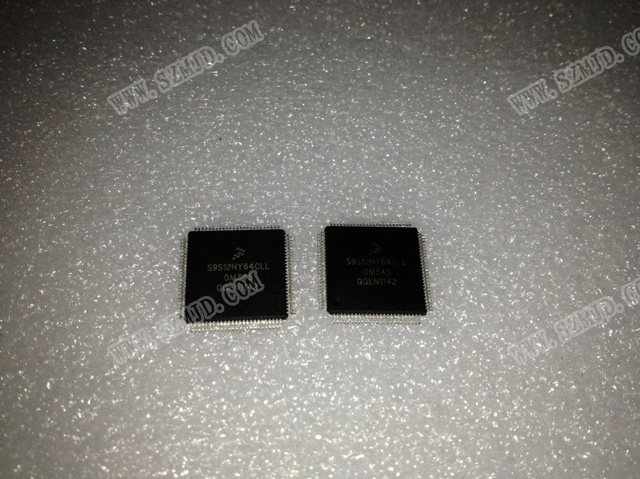

S9S12HY64J0CLL

S9S12HY64J0CLL
型号:S9S12HY64J0CLL
品牌:Freescale Freescale
批号:13+RoHs
封装:QFP
原价:23
数量:68000
PDF电子文档:
订购电话:86755-83294757
要查看会员价请注册登陆
备注:100% 全新原装(Brand new)
更多

  • 搜索此图
  • 收藏商品
  • 加入购物车
详细描述

 由于客户采购批量与样品的价格不同,网上无法统一注明,请您把采购型号通过邮件或客服QQ401799895发给我们,也可以拨打明佳达国内销售部电话:0755-83957301,由客服人员为您报价;有时元件厂商价格稍许变动,本公司未能及时调整,如您觉得售价稍高,请与我们说明并适当议价;感谢支持.



S9S12HY64J0CLL - S12 Microcontrollers



Chip-Level Features

On-chip modules available within the family include the following features:

 S12 CPU core

 Maximum 64MHZ core freqency, 32MHZ bus frequency

 Up to 64 Kbyte on-chip flash with ECC

 4 Kbyte data flash with ECC

 Up to 4 Kbyte on-chip SRAM

 Phase locked loop (IPLL) frequency multiplier with internal filter

 4–16 MHz amplitude controlled Pierce oscillator

 1 MHz internal RC oscillator

 Two timer modules (TIM0 and TIM1) supporting input/output channels that provide a range of 16-bit input capture, output compare, counter and pulse accumulator functions

 Pulse width modulation (PWM) module with up to 8 x 8-bit channels

 Up to 8-channel, 10-bit resolution successive approximation analog-to-digital converter (ATD)

 Up to 40x4 LCD driver

 PWM motor controller (MC) with up to 16 high current drivers

 Output slew rate control on Motor driver pad

 One serial peripheral interface (SPI) module

 One Inter-IC bus interface (IIC) module

 One serial communication interface (SCI) module supporting LIN communications

 One multi-scalable controller area network (MSCAN) module (supporting CAN protocol 2.0A/B)

 On-chip voltage regulator (VREG) for regulation of input supply and all internal voltages

 Autonomous periodic interrupt (API)

 Up to 22 key wakeup inputs 1.3 Module Features

The following sections provide more details of the modules implemented on the MC9S12HY/HA family



Shipping:

1.       We can shipping all over the world by DHL , UPS , FedEx and EMS . The packaging is very safe and strong. If you have any special needs please notify me..

2.       It will take around 3-5 days to reach your hands .



Product Type & Condition :

1.       Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated . So please consult the stock situation when you inquire.



Warranty & Guarantee :

All components we sell the quality with 30 days Return policy from the day of shipment.



Buyer Reading:

1. Please confirm receipt of products if the items you received , and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution

2. We only guarantee Delivery in time but we couldn't control the express delivery time. Our related sales person will be responsible to send the AWB for the delivered goods in the next workday. you can check the AWB in the website which we send to you. For the AWB you also can call to the local branch of the express company in your company.



If you have any other questions please feel free to contact us in any time



Because of wholesale price is different from sample price, our website cannot state. Please contact us online. As well as welcome you call us : 0755-83957301.We will offer a right price; Sometimes manufacturer's price is unstable, so we don't adjust price
