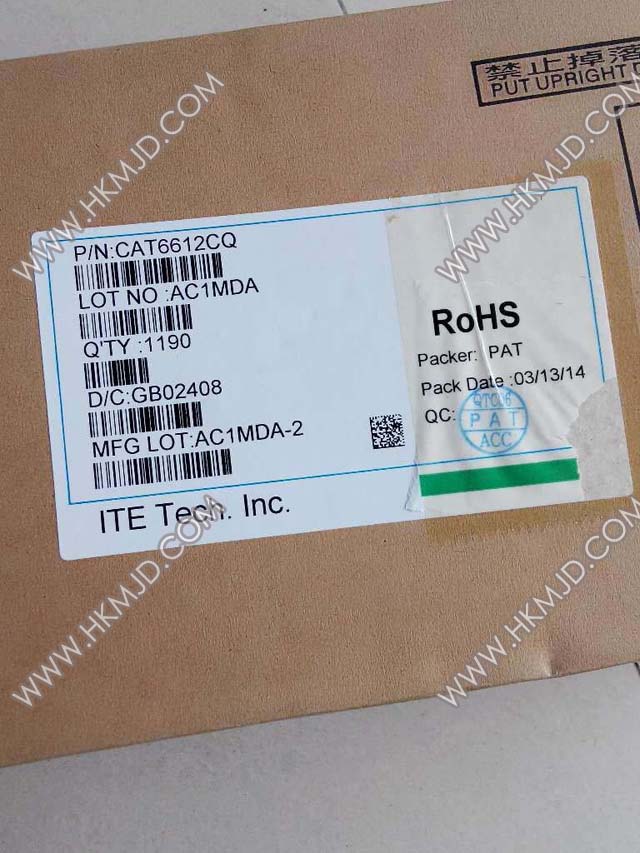

CAT6612

CAT6612
型号:CAT6612
品牌:ITE ITE
批号:14+RoHS
封装:QFP-80
原价:0
数量:786122
PDF电子文档:
订购电话:86755-83294757
要查看会员价请注册登陆
备注:原装进口 New and original
更多

  • 搜索此图
  • 收藏商品
  • 加入购物车
详细描述



 CAT6612CQ  CAT6612 --  Single-Link HDMI Transmitter

 Features
ƒ Single channel HDMI transmitter
ƒ Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 specifications
ƒ Supporting pixel rates from 25MHz to 165MHz
Š DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p
Š PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA
ƒ Various video input interface supporting digital video standards such as:
Š 24-bit RGB/YCbCr 4:4:4
Š 16/20/24-bit YCbCr 4:2:2
Š 8/10/12-bit YCbCr 4:2:2 (CCIR-656)
Š 12-bit double data rate interface
ƒ Bi-direction Color Space Conversion (CSC) between RGB and YCbCr color spaces with programmable coefficients.
ƒ Up/down sampling between YCbCr 4:4:4 and YCbCr 4:2:2
ƒ Dithering for conversion from 12-bit component and 8-bit
ƒ Digital audio input interface supporting
Š audio sample rate: 32~192 kHz
Š sample size: 16~24 bits
Š one I2S interface supporting 2-channel audio
 S/PDIF interface supporting PCM, Dolby Digital, DTS digital audio transmission at up to 192kHz
Š Compatible with IEC 60958 and IEC 61937
ƒ Software programmable HDMI output current, enabling user to optimize the performance for fixed-cable systems or those with pre-defined cable length
ƒ MCLK input is optional for audio operation. Users could opt to implement audio input interface with or without MCLK.
ƒ Integrated pre-programmed HDCP keys
ƒ Purely hardware HDCP engine increasing the robustness and security of HDCP operation
ƒ Monitor detection through Hot Plug Detection and Receiver Termination Detection
ƒ Intelligent, programmable power management
ƒ 80-pin LQFP package
ƒ RoHS Compliant ( 100% Green available )
-------------------------------------------------------------------------------------------------------------------------
