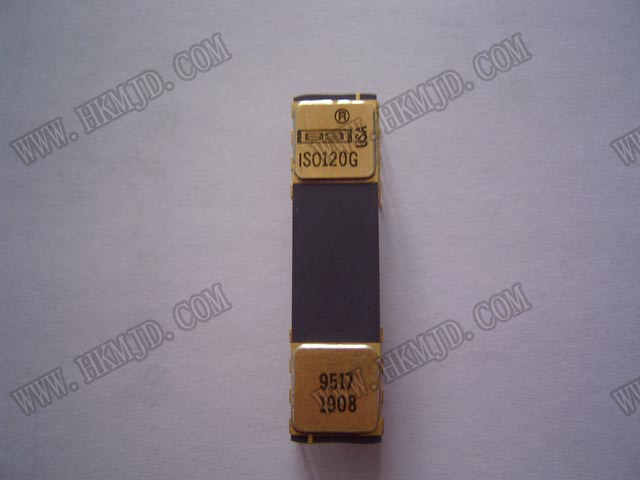

ISO120G

ISO120G
型号:ISO120G
品牌:BB BB
批号:13+RoHs
封装:DIP
原价:700
数量:50000
PDF电子文档:
订购电话:86755-83294757
要查看会员价请注册登陆
备注:100% 全新原装(Brand new)
更多

  • 搜索此图
  • 收藏商品
  • 加入购物车
详细描述

 ISO120G

Precision Low Cost ISOLATION AMPLIFIER



FEATURES
100% TESTED FOR PARTIAL DISCHARGE
ISO120: Rated 1500Vrms
ISO121: Rated 3500Vrms
HIGH IMR: 115dB at 60Hz
USER CONTROL OF CARRIER
FREQUENCY
LOW NONLINEARITY: ±0.01% max
BIPOLAR OPERATION: VO
 = ±10V
0.3"-WIDE 24-PIN HERMETIC DIP, ISO120
SYNCHRONIZATION CAPABILITY
WIDE TEMP RANGE: –55°C to +125°C
(ISO120)



APPLICATIONS
INDUSTRIAL PROCESS CONTROL: Transducer Isolator for Thermocouples, RTDs,
Pressure Bridges, and Flow Meters, 4mA
to 20mA Loop Isolation
GROUND LOOP ELIMINATION
MOTOR AND SCR CONTROL
POWER MONITORING
ANALYTICAL MEASUREMENTS
BIOMEDICAL MEASUREMENTS
DATA ACQUISITION
TEST EQUIPMENT



DESCRIPTION
The ISO120 and ISO121 are precision isolation amplifiers incorporating a novel duty cycle modulationdemodulation technique. The signal is transmitted
digitally across a 2pF differential capacitive barrier.
With digital modulation the barrier characteristics do
not affect signal integrity, which results in excellent
reliability and good high frequency transient immunity across the barrier. Both the amplifier and barrier
capacitors are housed in a hermetic DIP. The ISO120
and ISO121 differ only in package size and isolation
voltage rating.
These amplifiers are easy to use. No external components are required for 60kHz bandwidth. With the
addition of two external capacitors, precision specifications of 0.01% max nonlinearity and 150µV/°C max
VOS
 drift are guaranteed with 6kHz bandwidth. A
power supply range of ±4.5V to ±18V and low quiescent current make these amplifiers ideal for a wide
range of applications.


Because of wholesale price is different from sample price, our website can not state.Please send your required part number via email to Sales@hkmjd.com or add our skype id mjdccm898 for online talking.As well as welcome you call us : 0755-83957301  We will send offer for you;  Sometimes manufacturer's price is unstable, so we don't adjust price in time. if you feel price is a little high for you, just feel free to contact us for consultation. Thank you for your support !




批发与零售价位不同,无法一一明示,详情请通过邮件或客服咨询(国内销售部电话:0755-83957301,企业QQ2850151585), 由于电子元器件价格不稳定,时常有稍许变动,本公司未能及时调整,如您觉得售价不适,请与我们说明并适当议价,谢谢支持。
