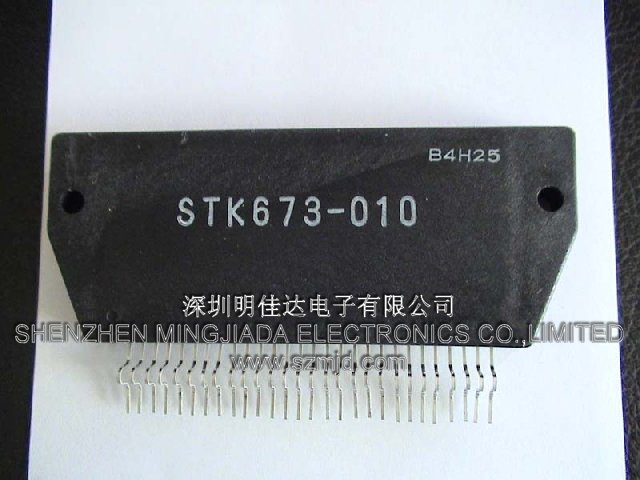

STK673-010

STK673-010
型号:STK673-010
品牌:SANYO SANYO
批号:13+
封装:HYB-28
原价:40
数量:26552
PDF电子文档:
订购电话:86755-83294757
要查看会员价请注册登陆
备注:100% brand new and original (100% 全新原装)
更多

  • 搜索此图
  • 收藏商品
  • 加入购物车
详细描述

STK673-010 - 3-Phase Stepping Motor Driver Output Current 2.4A

Overview

The STK673-010-E is a 3-phase stepping motor driver hybrid IC with built-in microstep controller having a bipolar

constant current PWM system, in which a power MOSFET is employed at an output stage.

It includes a 3-phase distributed controller for a 3-phase stepping motor to realize a simple configuration of the motor

driver circuit.

The number of motor revolution can be controlled by the frequency of external clock input. 2, 2-3, W2-3 and 2W2-3-phase

excitation modes are available. The basic step angle of the stepping motor can be separated as much as one-eighth 2-3-

phase to 2W2-3-phase excitation mode control quasi-sine wave current, thereby realizing low vibration and low noise.



Applications

• As a 3-phase stepping motor driver for transmission and reception in a facsimile.

• As a 3-phase stepping motor driver for feeding paper feed or for an optical system in a copying machine.

• Industrial machines or products employing 3-phase stepping motor driving.



Features

• Number of motor revolution can be controlled by the frequency of external clock input.

• 4 types of modes, i.e., 2, 2-3, W2-3 and 2W2-3-phase excitations, are available which can be selected based on rising of

clock signals, by switching Highs and Lows of Mode A and Mode B terminals.

• Setting a Mode C terminal Low allows an excitation mode that is based on rising and falling of a clock signal.

By setting the Mode C terminal Low, phases that are set only by Mode A and Mode B can be changed to other phases as

follows without changing the number of motor revolution: 2-phase may be switched to 2-3-phase; 2-3-phase may be

switched to W2-3-phase; and W2-3-phase may be switched to 2W2-3-phase.

• Phase is maintained even when the excitation mode is changed.
