产品资讯

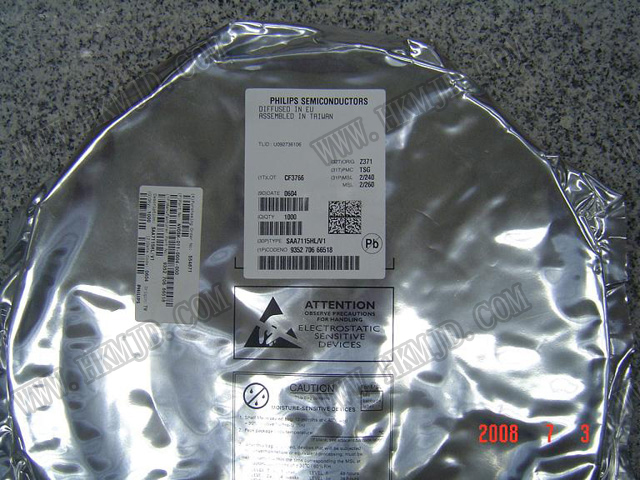

SAA7115HL

型号：SAA7115HL
品牌：NXP

批号：13+RoHs
封装：QFP
原价：22
数量：68000
PDF电子文档：

订购电话：86755-83294757
要查看会员价请注册或登陆
备注：100% 全新原装（Brand new)

详细描述

SAA7115HL

PAL/NTSC/SECAM Video Decoder with Adaptive PAL/NTSC Comb Filter, High Performance Scaler, I2C Sliced Data Readback and SQ PIXEL OUTPUT

FEATURES

2.1 Video Acquisition

Six analog inputs, internal analog source selectors, (e.g.: 6x CVBS or(2 x YC and 2 CVBS) or (1 x YC and 4xCVBS)

Two built in analog anti-alias filters

Two improved 9 Bit CMOS analog-to-digital converter in differential CMOS style at two-fold ITU-656 oversampling

(27MHz)

Fully programmable static gain or automatic gain control (AGC) for the selected CVBS or Y/C channel

Automatic Clamp Control (ACC) for CVBS, Y and C

Switchable white Peak Control · Two 9-bit Video CMOS AD Converters, digitized CVBS or Y/C

signals are available on the expansion port (X-port)

Requires only one crystal (32.11 MHz or 24.576 MHz) for all standards

Independent Gain and Offset - adjustment for raw data path

2.2 Combﬁlter Video Decoder

Digital PLL for Synchronization and Clock Generation from all Standards and Non Standard Video Sources e.g.

consumer grade VTR

Automatic detection of 50/60Hz field frequency, and automatic recognition of all common broadcast standards

Enhanced Horizontal and vertical Sync Detection

Luminance and chrominance signal processing for

PAL BGDHIN,

Combination-PAL N,

PAL M,

NTSC M,

NTSC-Japan,

NTSC 4.43 and

SECAM (50 Hz / 60 Hz)

PAL delay line for correcting PAL phase errors

Because of wholesale price is different from sample price, our website can not state. Please send your required part number via email Sales@hkmjd.com or add Skype address mjdccm898 for talking. As well as welcome you call us : 0755-83957301 We will send offer for you; Sometimes manufacturer's price is unstable, so we don't adjust price in time. if you feel price is a little high for you, just feel free to contact us for consultation. Thank you for your support ！

批发与零售价位不同,无法一一明示,详情请通过邮件或客服咨询(国内销售部电话:0755-83957301,企业QQ2850151585), 由于电子元器件价格不稳定,时常有稍许变动,本公司未能及时调整,如您觉得售价不适，请与我们说明并适当议价,谢谢支持。
